Description:
TECHNICAL SPECIFICATION

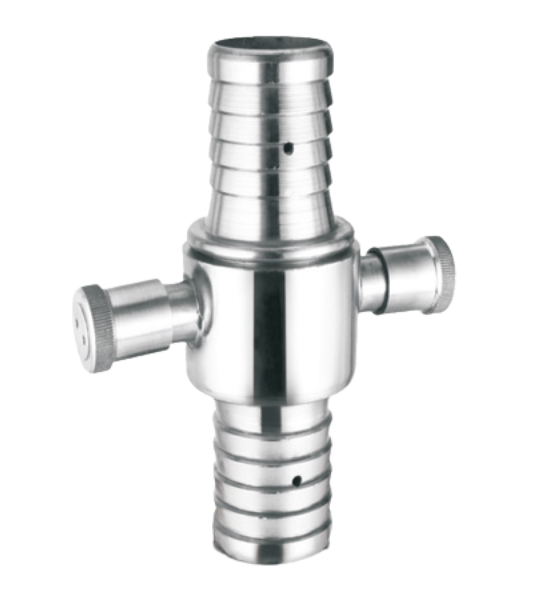

FIRE HOSE DELIVERY COUPLING
Material : Gun metal LTB-2, Stainless steel &Aluminium
Size : 63 mm
Specification : Conforming to IS 903
Hydraulic Test : Tested at 21 kgf/cm2
Water Test : Tested at 14kgf/cm2

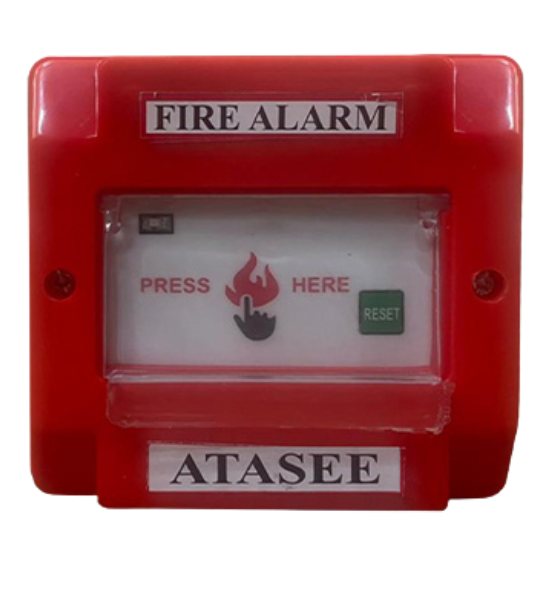

Description:
Compatibility with all conventional fire control panel Alarm test key facilities
Glass protected by thin flim.
Wall mounted.
LED blinking facility(optional)
Power I/P: 24 V DC
Current Consumption : NA/30MA(Normal/Fire)
Housing : ABS
Weight : 150gm.
Dimension(mm) : 85x85x50
Color : Red

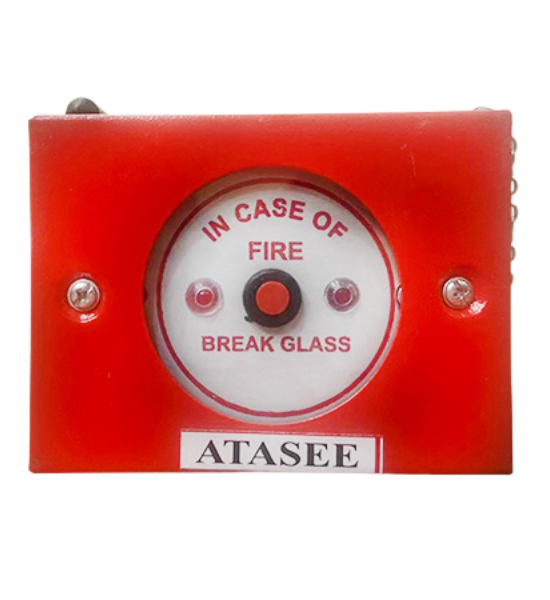

Description:
SPECIFICATIONS
Fully complies to IS 2189 & Tested By ERTL (N)
Power : I/P-18-26V DC
Weight : 104gm/540gm
Dimension : L90mm x D52 mm W 118mm / L 89mm D 50mm x W 103mm
Current consumption : NA(Normal)/30 ma (Fire)
Built in : MS Housing / ABS Housing
Colour : RED

Description:
APPLICATION
TECHNICAL SPECIFICATIONS

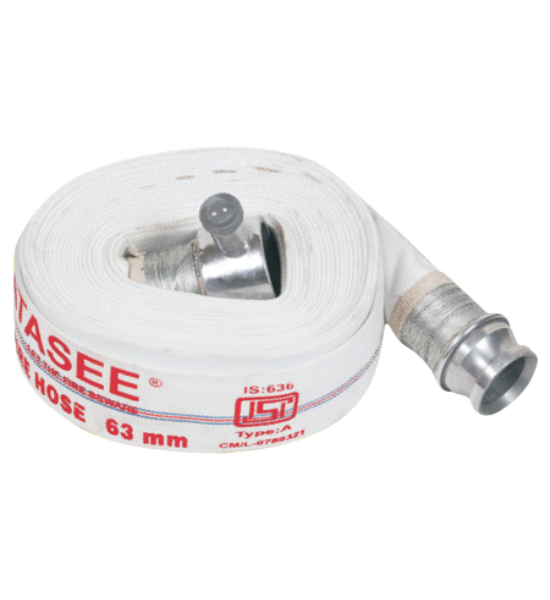

Material : Rubber Reinforced Lined (RRL) Hoses
Size : 63 mm & 80 mm
length : As Per Cleint Requirement
Binding Wire : Copper or G.I Wire
Specification : IS : 636
Hydraulic Pressure : Tested at 13 kg/cm2
Bursting Pressure : 39 kg/Cm2

Description:

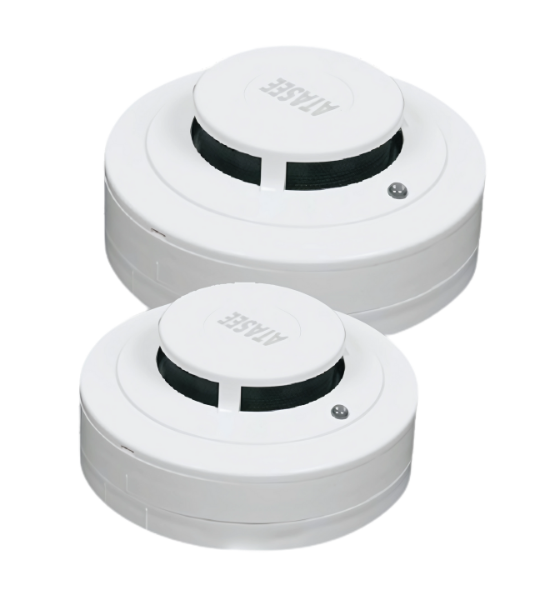

FEATURES
Dual LED for 360 degree visibility
2wire based detector
Advance algorithms provides advanced detection
Easy Installation
Low maintenance
High immunity against unwanted alarms
Stable optical smoke sensing chamber, No adustment or replacement required
